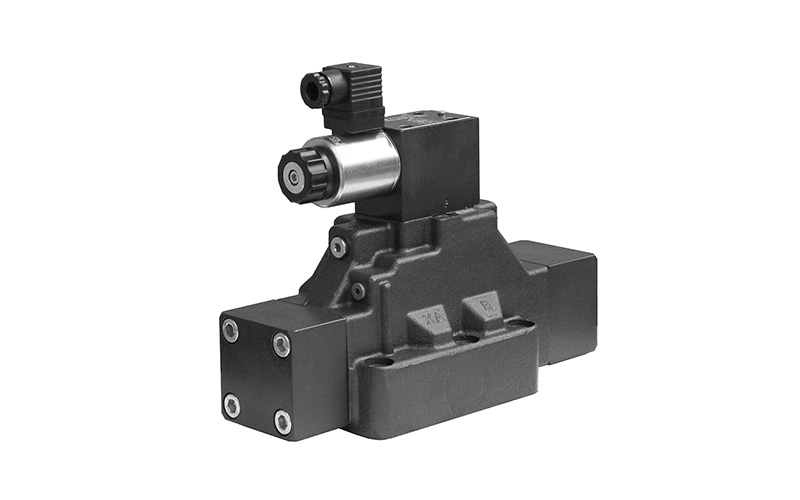

Proportional 3-port pressure reducing valves, pilot operated
DZCE*
Details
- Catalog: 81601
- Size:
- CETOP P05
- ISO 4401-05
- ISO 4401-07
- ISO 4401-08
- Mounting Style: subplate
- Max Operating Pressure: 350 bar
- Max Flow: 500 l/min
Download
- Rendering 3D: 3D Model
- * Data sheets:
- Other languages:
- * Last update: IT (24/11/2023)
DESCRIPTION
The DZCE5, DZCE5R, DZCE7 and DZCE8 are proportional 3-port pressure reducing valves, pilot operated, for subplate mounting.
These valves act as pressure reducing valves that, besides reducing the pressure from line P to working line A, allow the flow to return from working line A to discharge T when a pressure greater than the set value is generated in the downstream circuit.
They can be controlled directly by a current-controlled power supply or by an electronic card, to be ordered separately.
